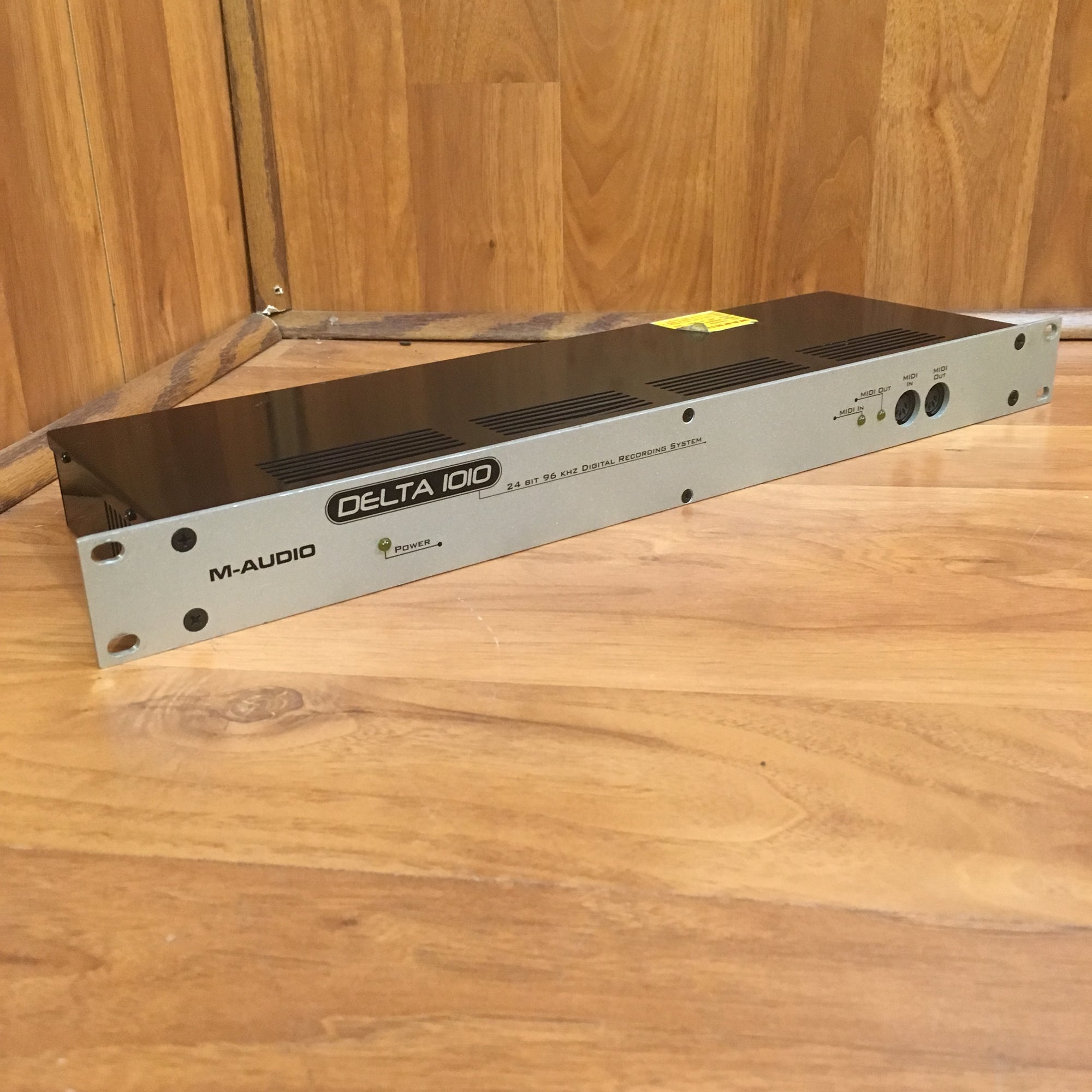

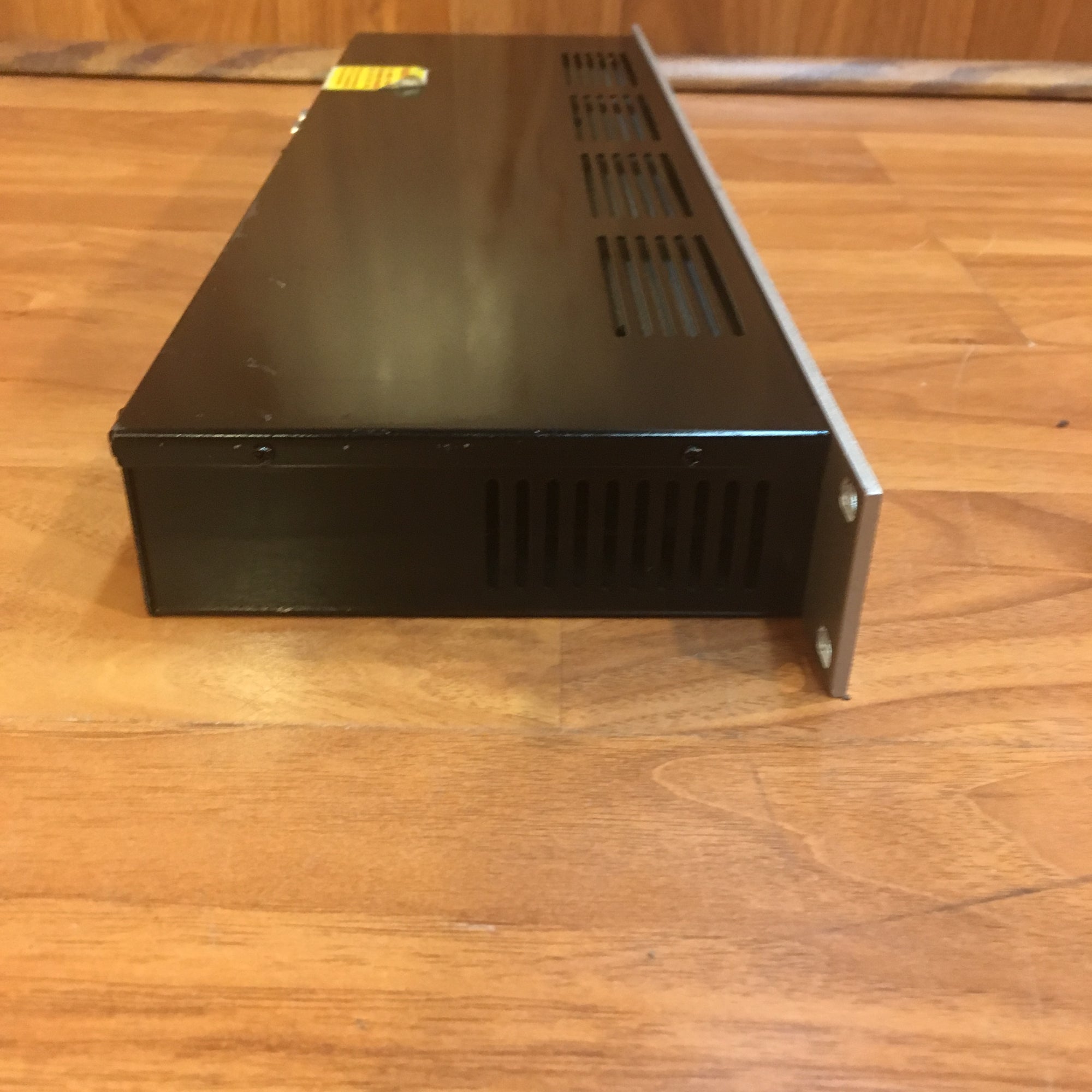

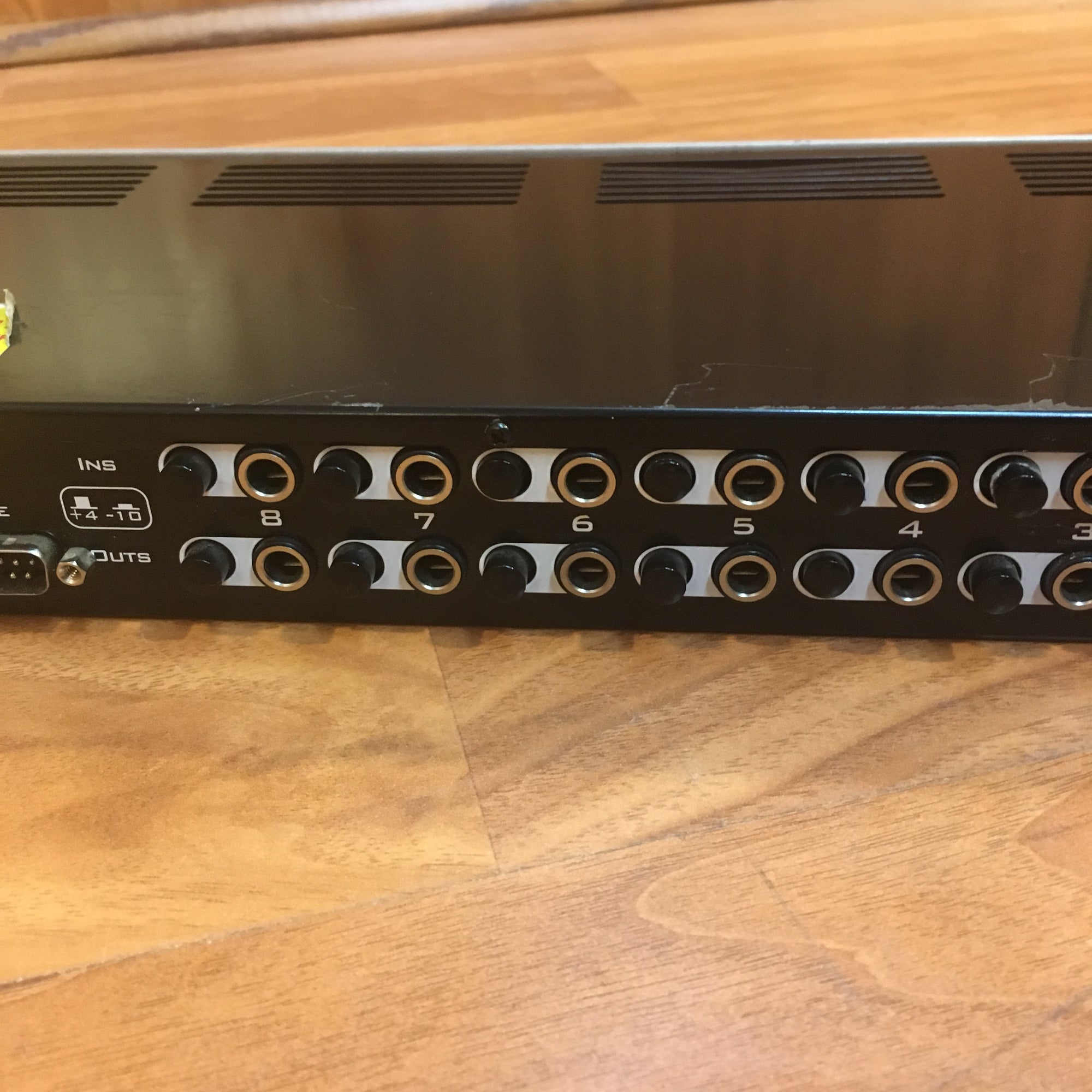

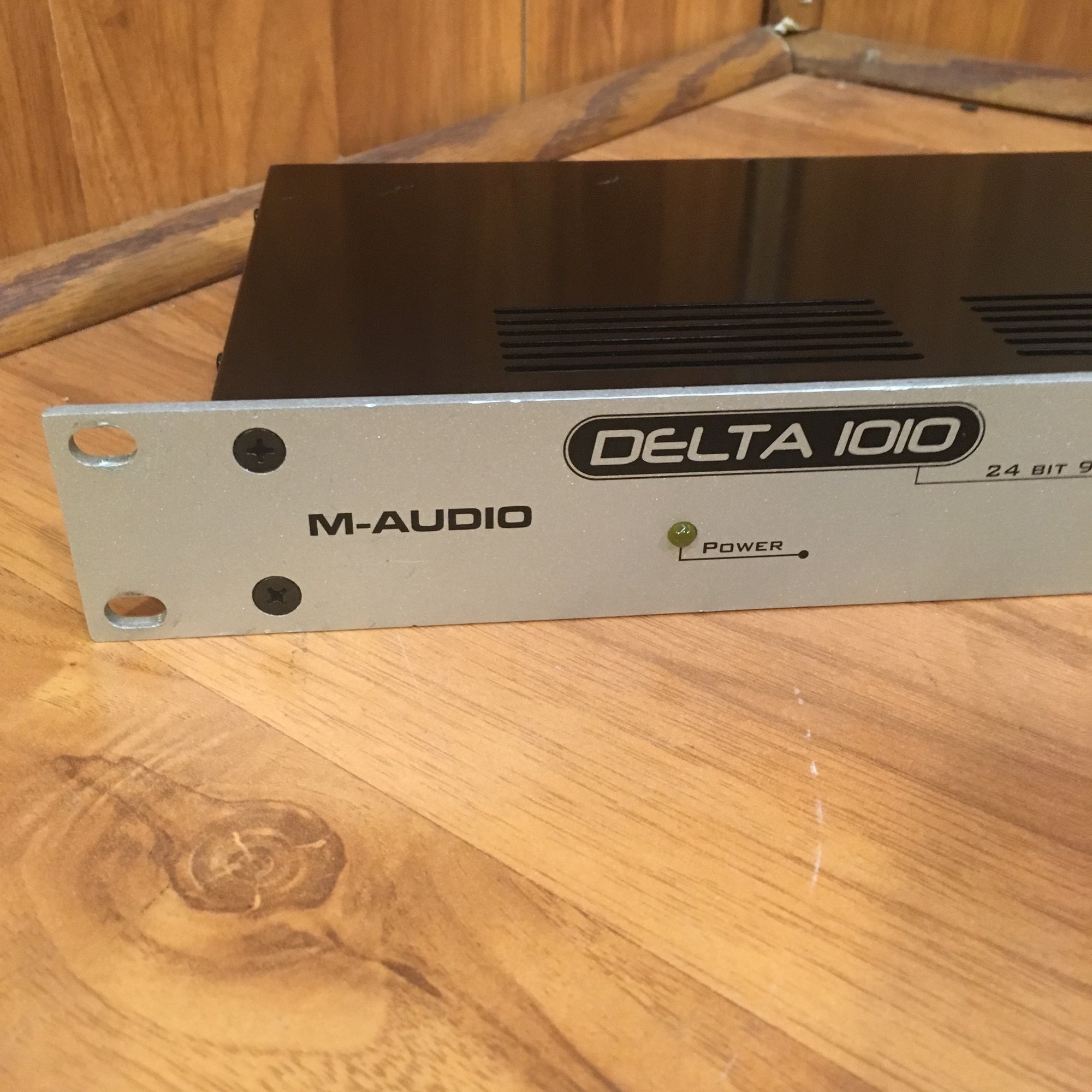

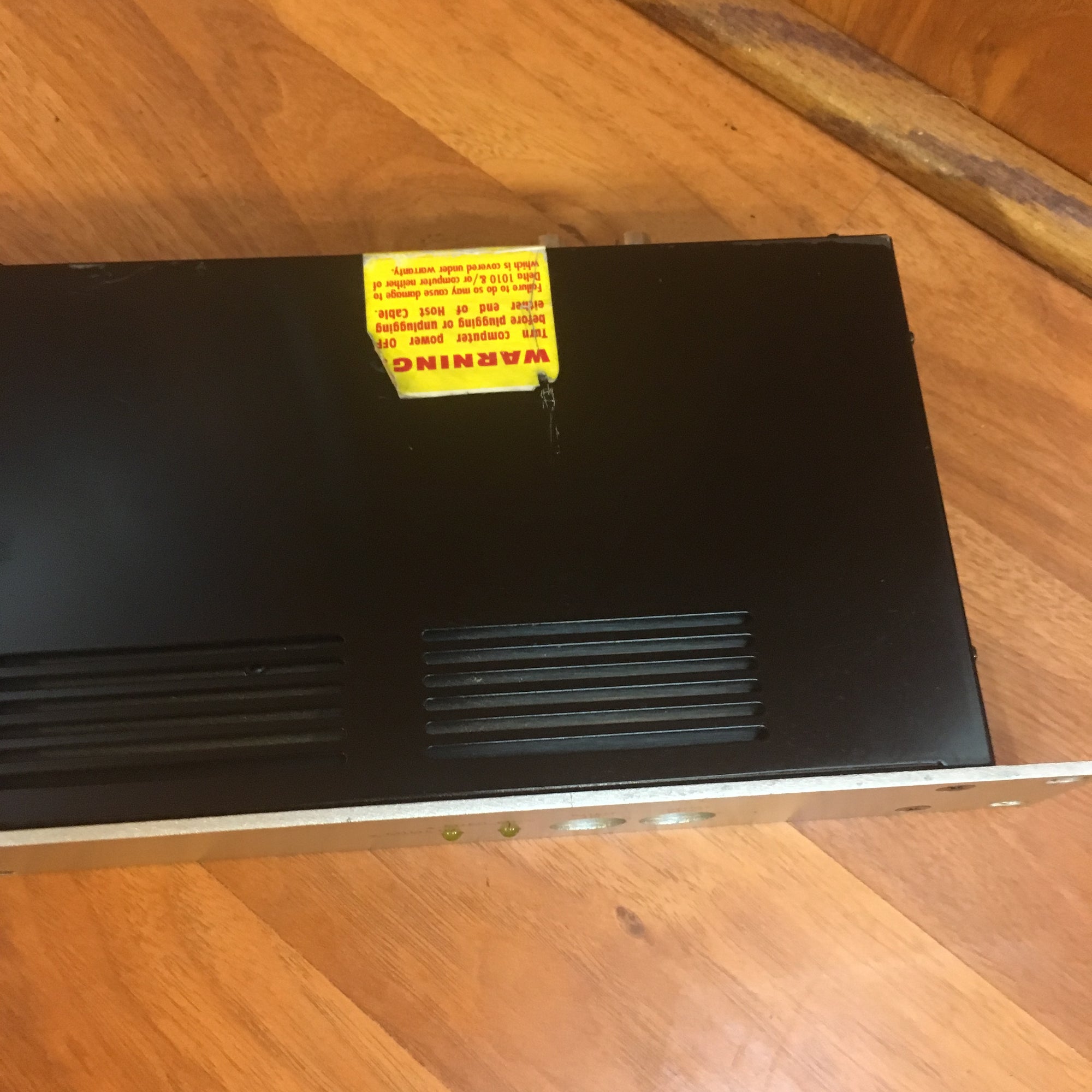

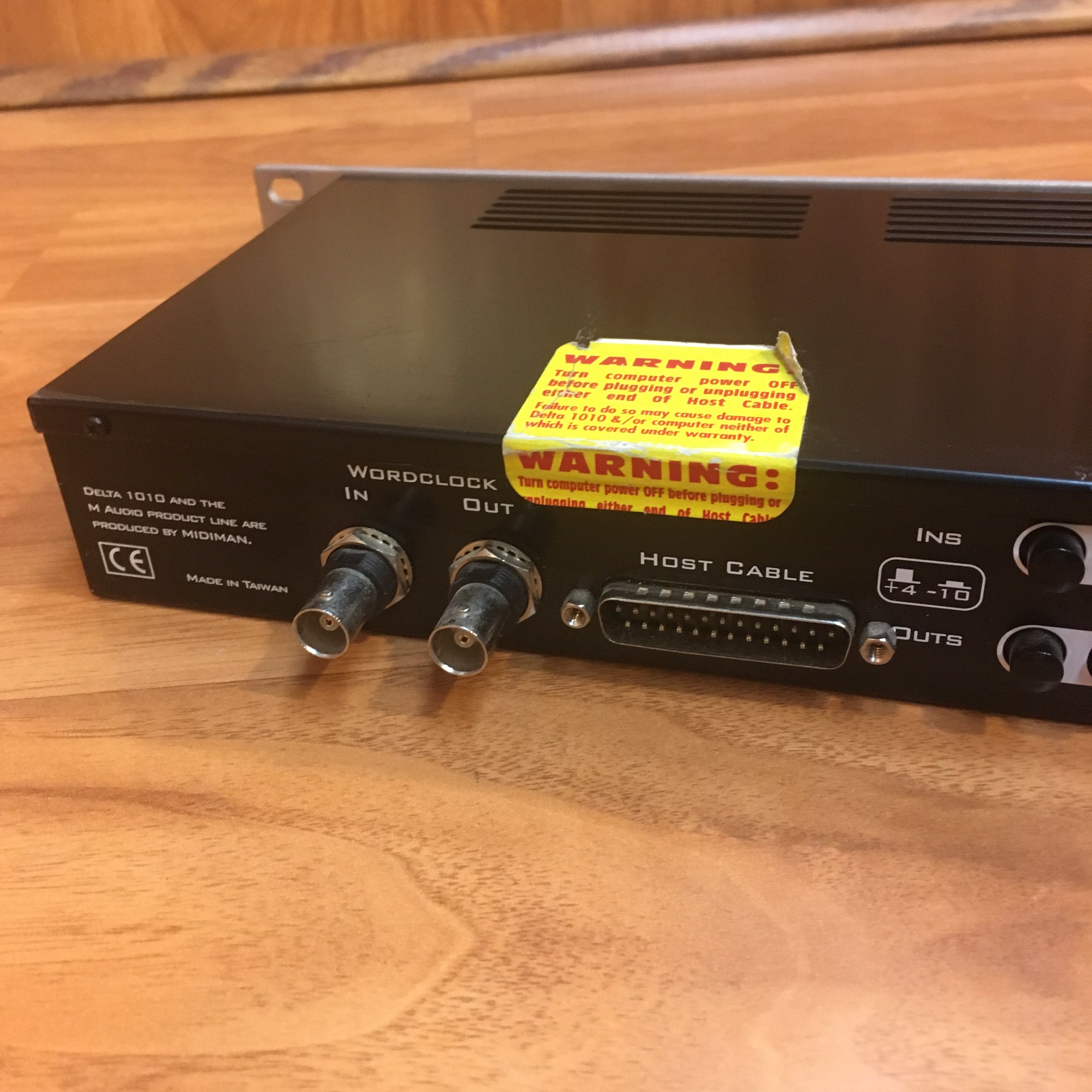

M-Audio Delta 1010 Interface (untested)

10-In/10-Out PCI/Rack Digital Recording System with MIDI and Digital I/O in good condition with few scratches on top, but no blemishes on the face of the unit. It is untested since it does not come with a Data cable. You can return items to us within ten days, or call before the ten days is up!

Additional Info:
Recognized around the world as the top choice in host-based PCI digital audio solutions, the rack-mount Delta 1010 is designed to handle the needs of the most demanding project and professional studios. Superb engineering and ultra-high quality converters deliver fidelity surpassing systems that cost many times more. Multiple inputs accommodate recording numerous tracks simultaneously, including zero-latency monitoring for seamless overdubs. Multiple outs route individual tracks or soft synth/sampler timbres to a mixing console, or directly drive up to 7.1 surround sound systems. The analog outs also remain live for monitoring while mixing or transferring digital signals via S/PDIF. MIDI I/O rounds out everything you need to take advantage of today’s music software. Combine up to four Deltas* in your system for a maximum of 32 analog and four stereo S/PDIF inputs and outputs.

36-bit Embedded DSP
All Delta cards contain a 36-bit embedded DSP enabling a software-driven patchbay/router for all analog and digital I/O—all with extremely fast throughput for low-latency software monitoring. A single unified control panel provides settings for clock and sample rates, buffer sizes, individual signal levels for every input and output, adjustable +4dBu/-10dBV pad controls and digital I/O control on up to four installed Delta cards. All controls are also easily accessible through most professional audio software applications for seamless integration and operation.

* It is not possible to use multiple (linked) audio cards with Pro Tools M-Powered or Pro Tools MP.

Features
10 x 10 24-bit/96kHz full-duplex recording interface
8 x 8 analog I/O on balanced/unbalanced 1/4” TRS
S/PDIF digital I/O (coaxial) with 2-channel PCM
SCMS serial copy management control
Digital I/O supports surround-encoded AC-3 and DTS pass-through
Up to 24-bit/96kHz fidelity
analog outs can directly drive up to 7.1 surround
+4dBu/-10dBV operation individually switched on rack-mount unit
Word clock I/O for sample-accurate device synchronization
Software-controlled 36-bit internal DSP digital mixing/routing
Zero-latency monitoring
Apple G5 compatible - Incompatible exceptions (DUAL G5 1.8 GHz system with 4 RAM slots, DUAL G5 2.0 GHz system with 4 RAM slots)
includes Ableton Live Lite music production software, so you can make music right away
Specifications
Frequency Response: 20Hz-22kHz, +/-0.3dB
Dynamic Range (A-weighted): 109dB (A/D), 117dB (D/A)
Signal-To-Noise Ratio (A-weighted): -109 dB (A/D), -117dB (D/A)
THD +N: 0.00072% (A/D), 0.00200% (D/A)
Requirements
Compatibility
ASIO 2
MME
Sound Manager
OMS
DirectX
Mac OS X Core Audio / Core MIDI

Minimum System Requirements (PC)
Windows 98SE*/Me*/2000 (SP4)*/XP** (SP2) / Vista SP2 (32Bit , 64 Bit) / Win7 (32Bit , 64 Bit)
DirectX 9.0c
Pentium III 500 MHz w/128MB RAM
* No ongoing updates/support for Windows 98SE, Me or 2000
** Home and Professional Edition only. Windows Media Center Edition is not supported.
*** Please check the minimum system requirements of your DAW software as they may be higher.

Minimum System Requirements (Mac)
OS 9.2.2* w/128MB RAM, Opcode OMS 2.3.8 for MIDI
Mac OS X 10.2.8, 10.3.8 w/256MB RAM
Mac OS X 10.4.5, 10.5.1 w/512MB RAM
G3/G4 500**
G5 w/PCI-X expansion slots*** - Incompatible exceptions (DUAL G5 1.8 GHz system with 4 RAM slots, DUAL G5 2.0 GHz system with 4 RAM slots)
* No ongoing updates/support for Mac OS 9 or Mac OS X 10.2.8
**G3/G4 accelerator cards not supported
***Intel based Mac Pro & DualCore G5 with PCI-Express expansion slots not supported.
Please check the minimum system requirements of your DAW software as they may be higher.


Please message us any questions!
