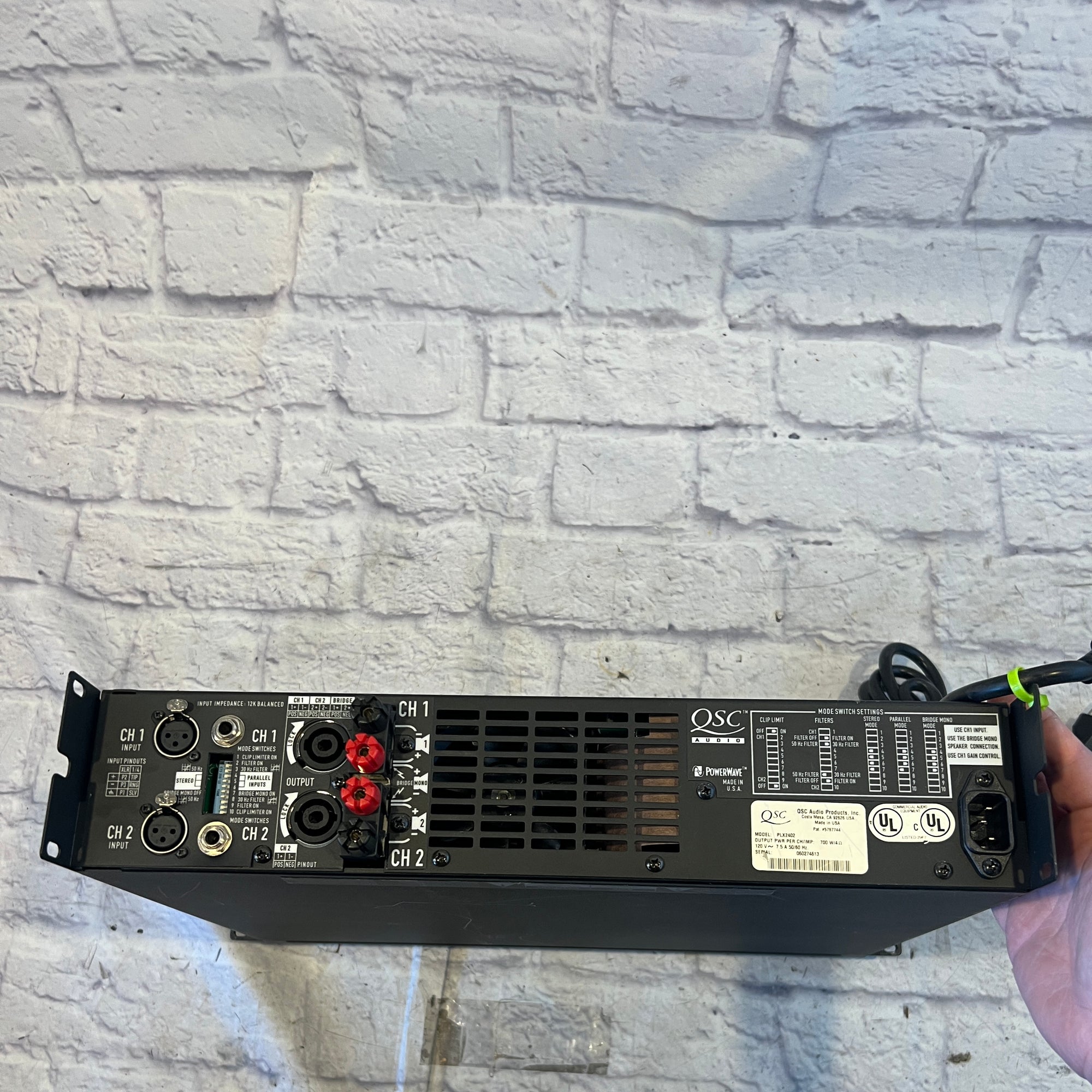

QSC PLX2402 2400 Watt 2-Channel Power Amp

Notes

  • Specifications: Watts Stereo Mode (both channels driven) 8 ohms 20 Hz-20 kHz 0.03% THD 425W 4 ohms 20 Hz-20 kHz 0.05% THD 700W 2 ohms 1 kHz 1% THD 1200W Watts Bridge Mono Mode 16 ohms 20 Hz-20 kHz 0.01% THD: 850W 8 ohms 20 Hz-20 kHz 0.01% THD: 1500W 4 ohms 1 kHz 1% THD: 2400W Noise (20 Hz-20 kHz): <-1.8 dB Input Sensitivity @ 8 ohms: 1.5 Vrms Input Sensitivity @ 4 ohms: 1.3 Vrms Output Circuitry: 2-Step Power Requirements (1/8 power pink noise @ 4ohms): 8A Distortion (SMPTE-IM) Less than 0.01% Distortion (typical) 20 Hz-20 KHz (10 dB below rated power) 1.0 kHz and below full rated power: Less than 0.01% THD Frequency Response: 20 Hz-20 kHz, � 0.2 dB/8 Hz-50 kHz, +0, -3 dB Damping Factor: greater than 500 Input Impedance: 6 K ohms unbalanced, 12 K ohms balanced Input Clipping: 10 Vrms (+22dB) Cooling: Variable-speed fan, rear-to-front air flow Connectors: (each channel) Input: 3-pin XLR and 1/4 in. TRS balanced Output: Neutrik Speakon and touch-proof binding posts Amplifier Protection: Full short circuit, open circuit, thermal, ultrasonic, and protection Stable into reactive or mismatched loads. Load Protection On/off muting, DC-fault power supply shutdown Dimensions: 19 in. (48.3cm) rack mounting, 3.5 in. (8.9 cm) tall (2 rack spaces), 13.25 in. (33.7 cm) deep (from front mounting rails) Gain: 40x (32 dB) Weight: 21 lbs. (9.5 kg) net
  • Very clean overall - shows virtually no signs of previous use

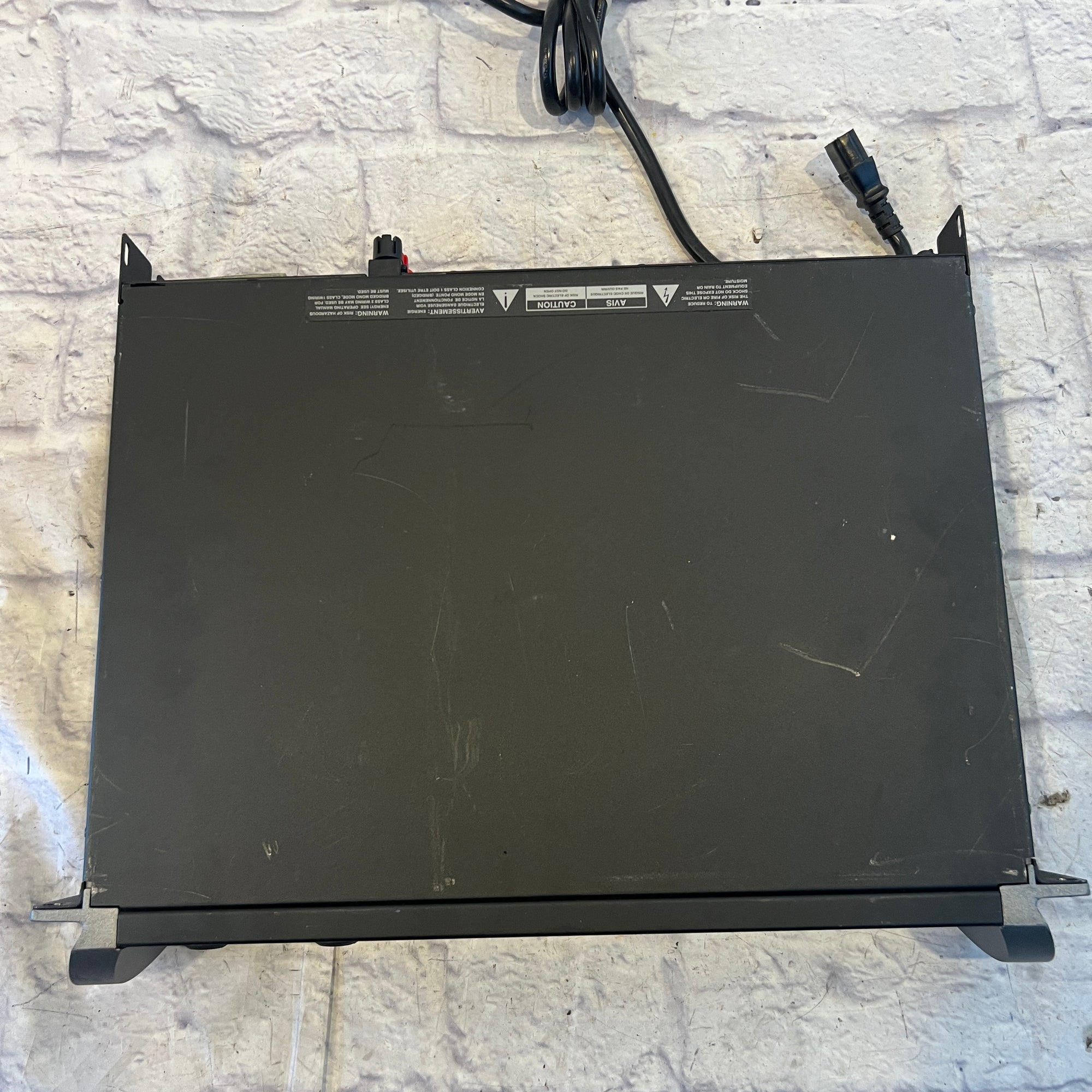

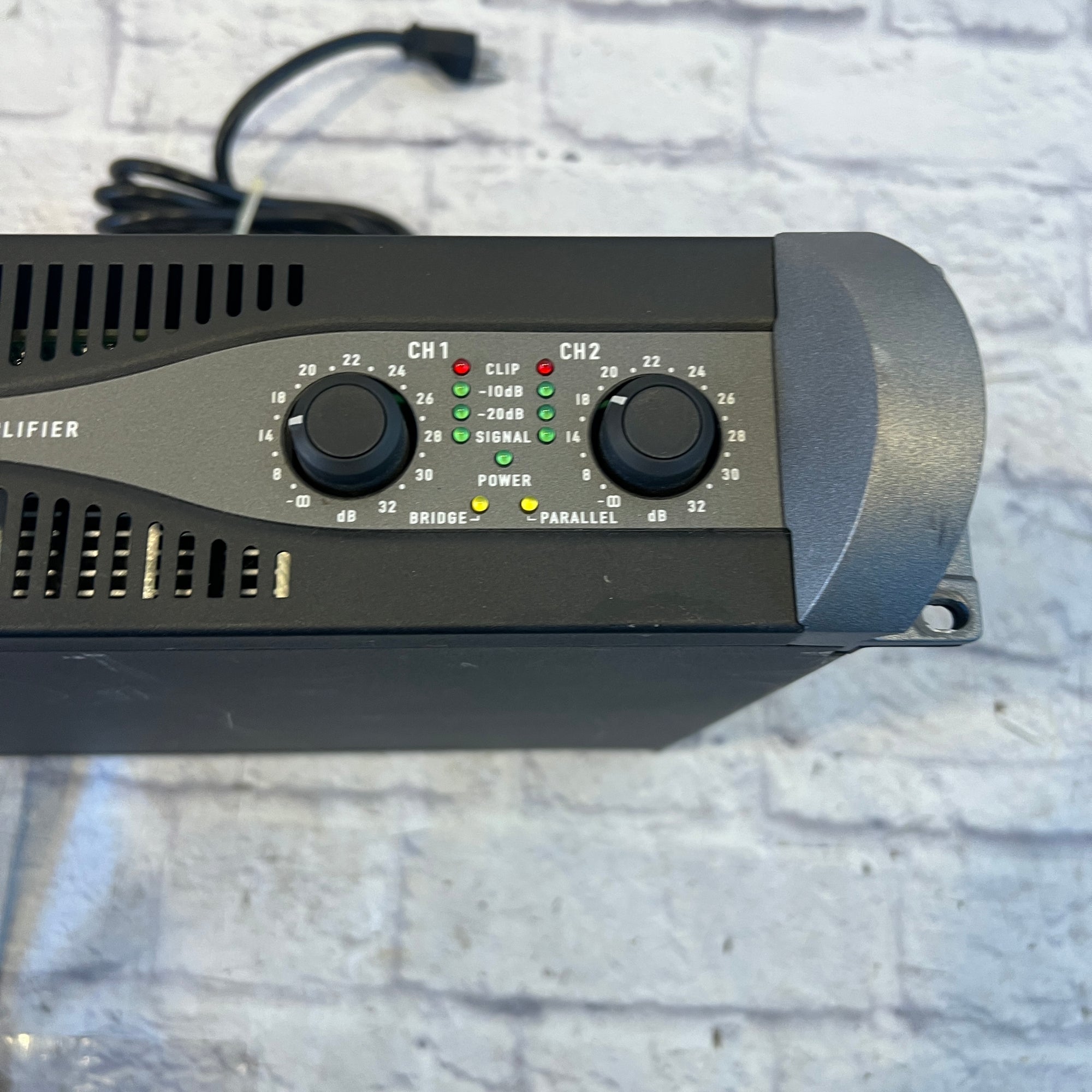

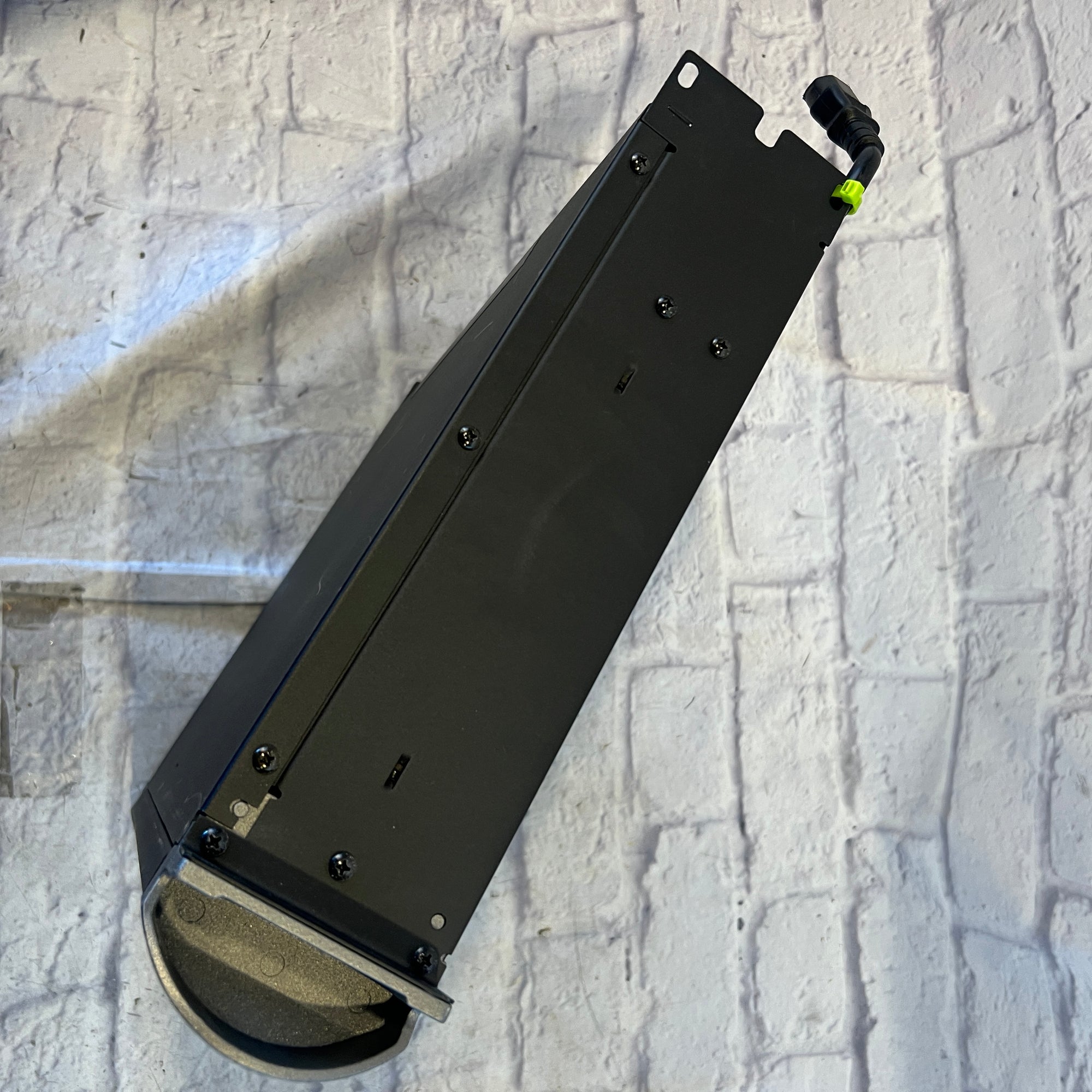

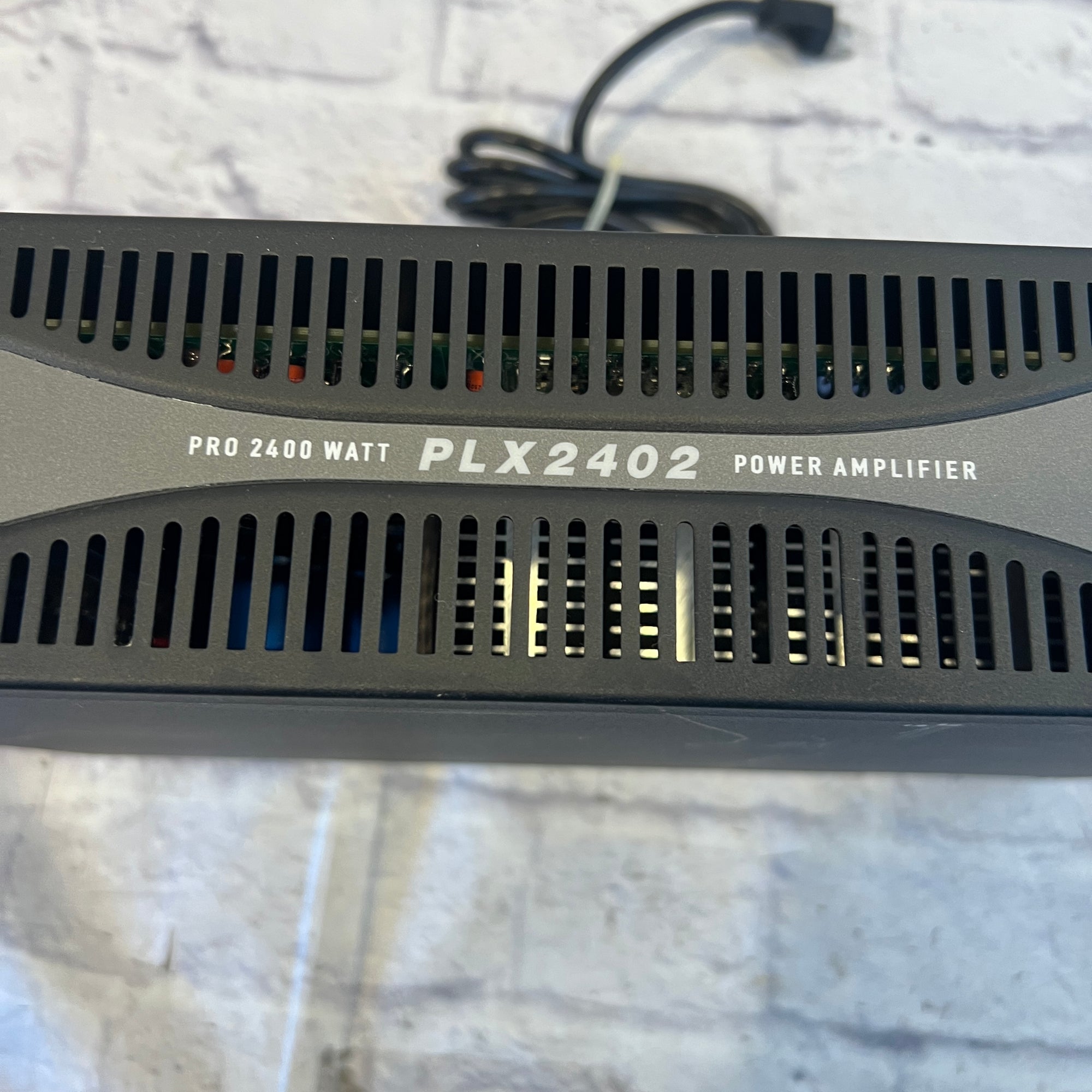

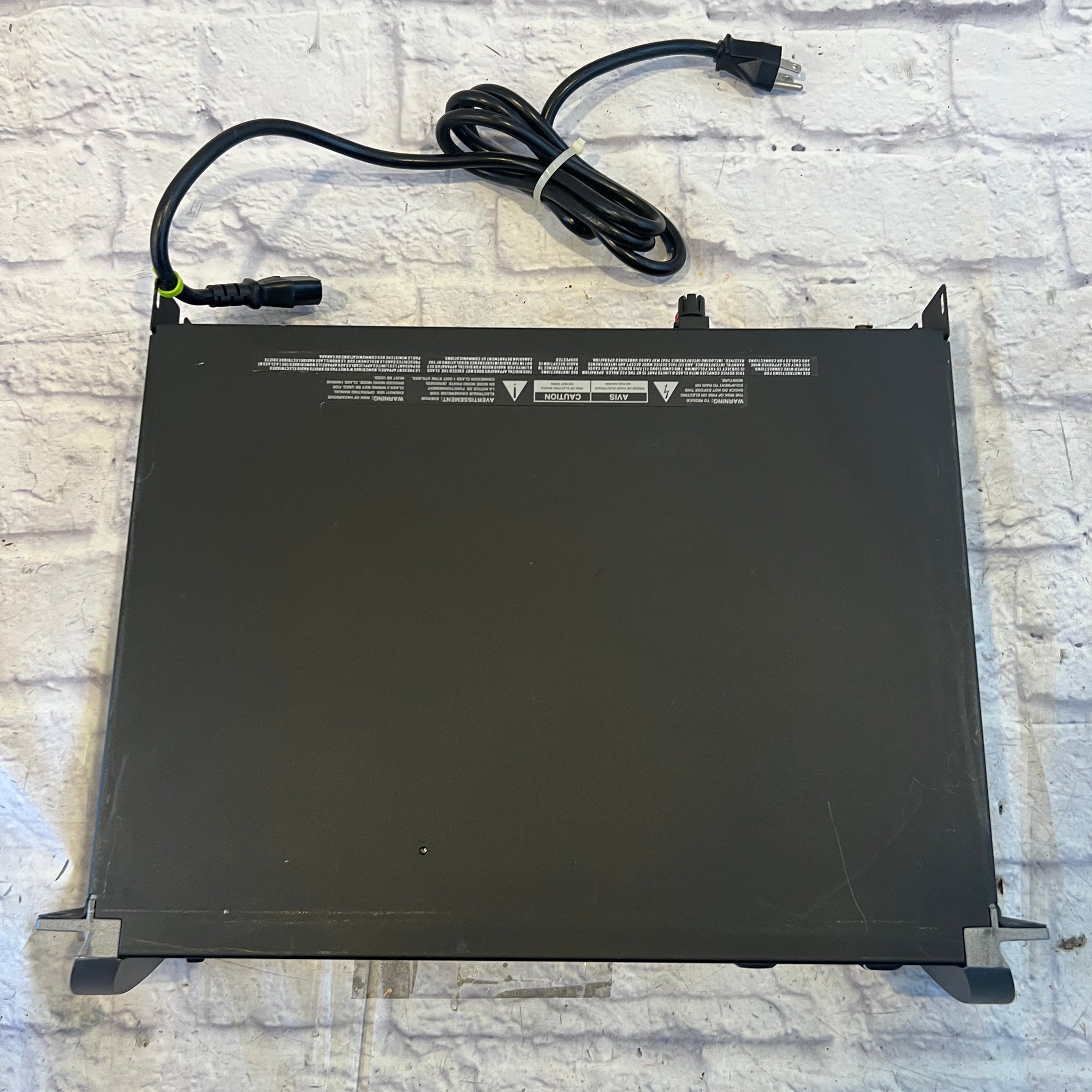

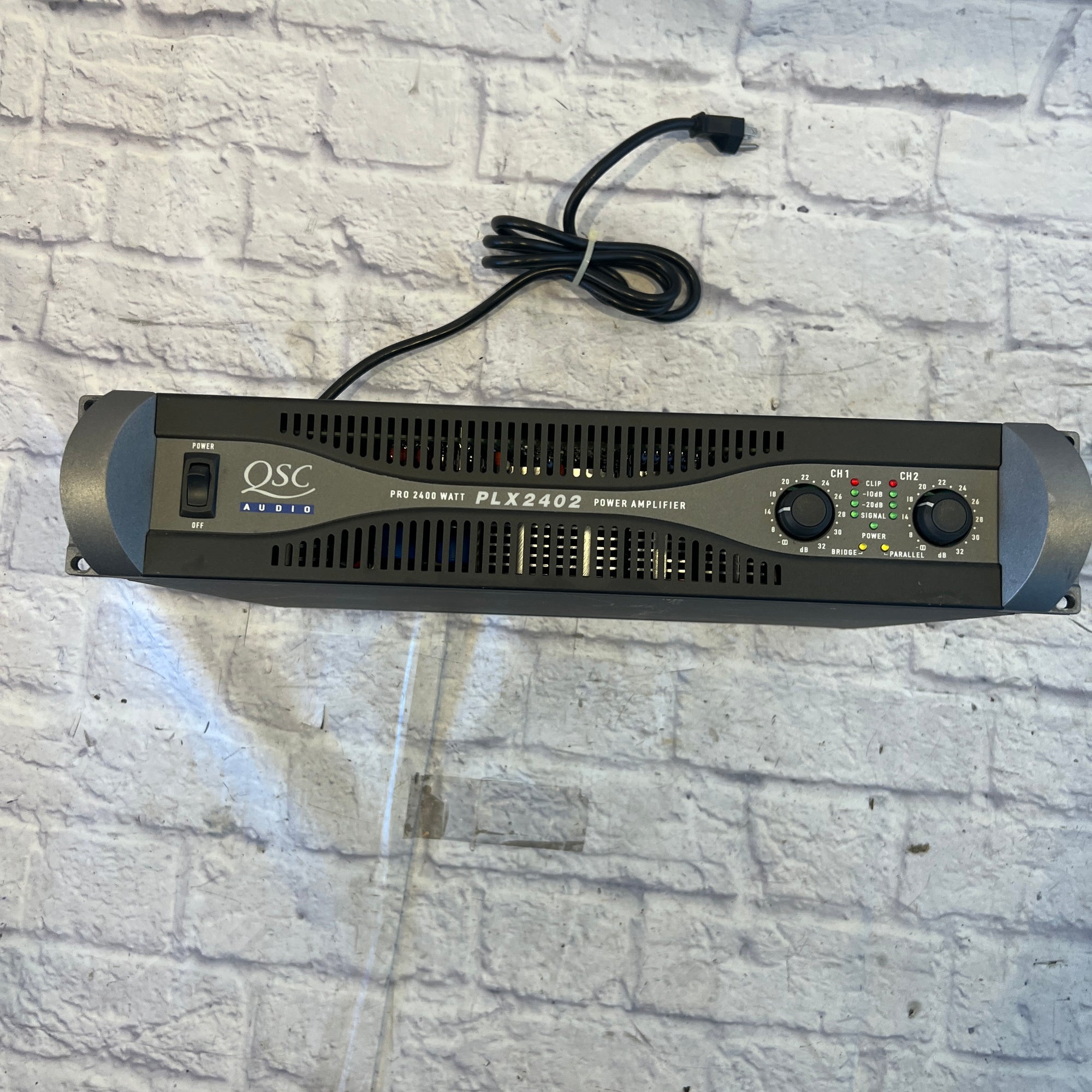

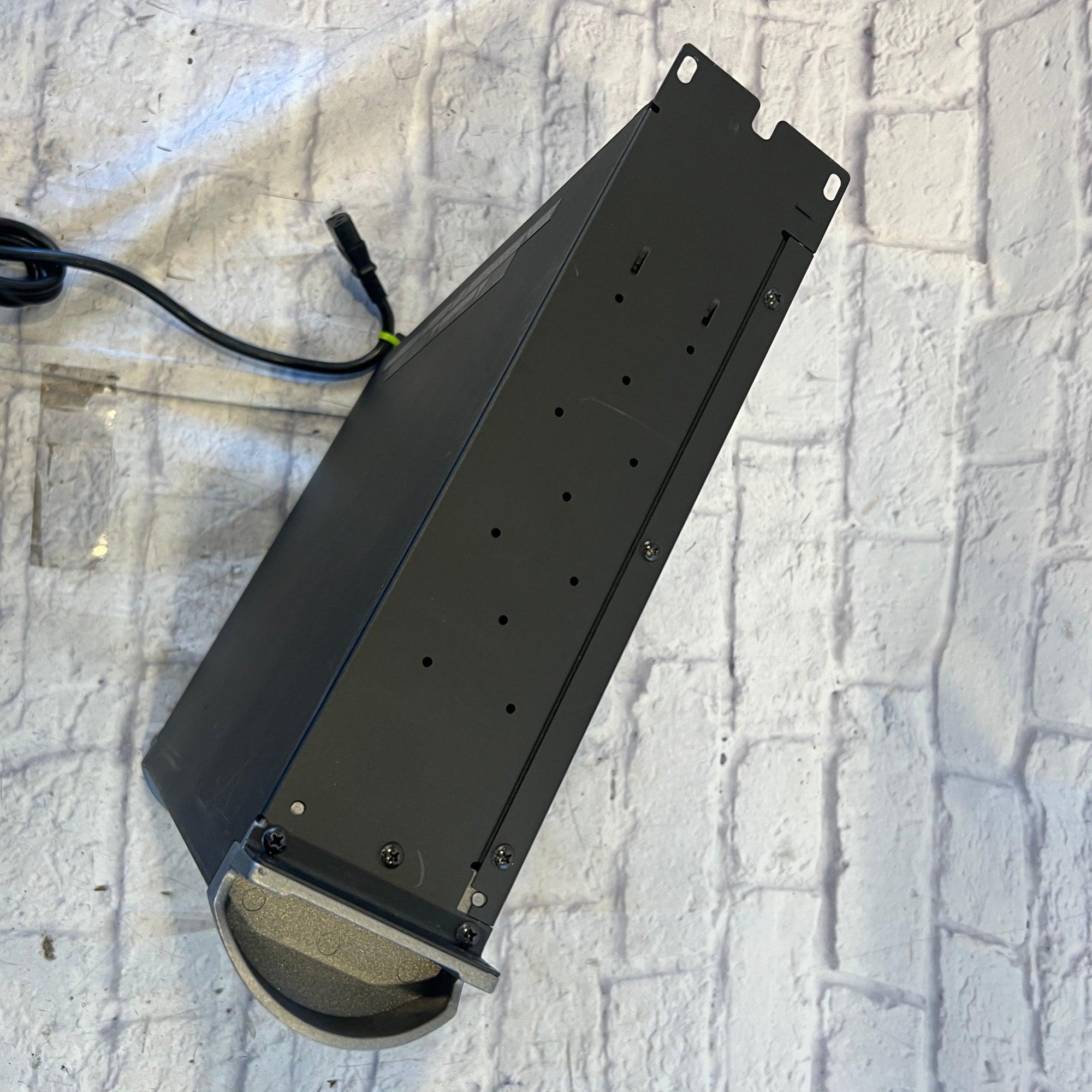

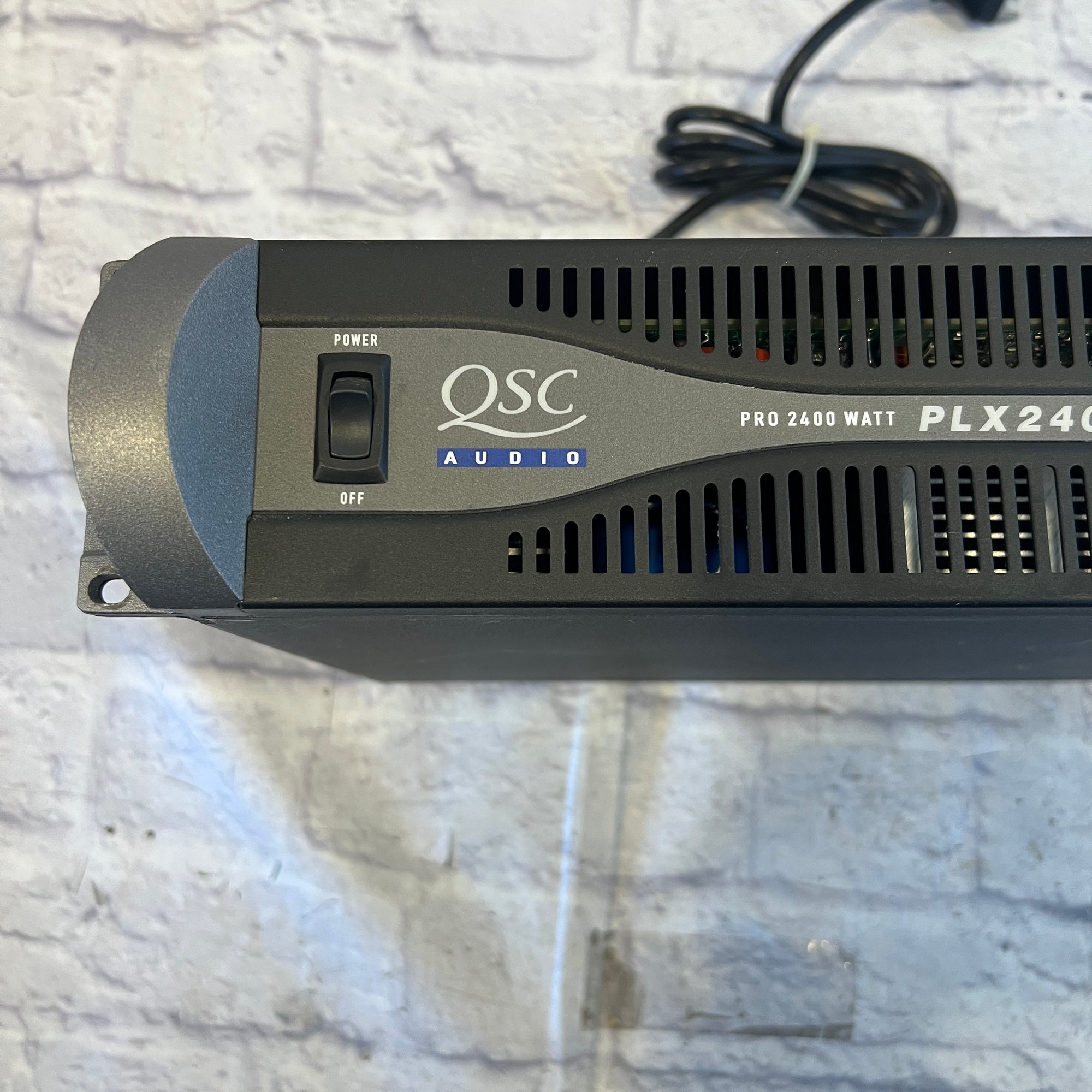

A QSC PLX2402 2400 Watt 2-Channel Power Amp in Excellent condition!

At Evolution Music, we attempt to highlight cosmetic defects (if any) by picturing every angle of every piece of gear so you know exactly what you are getting.  We always picture any and all accessories too.  What you see is what you will get so please check out the pictures!  Everything we sell has been tested and is fully functional unless otherwise noted. We have a 5 star rating from 1000+ happy customers across our three locations.  Please message us if you have any questions.  We are always happy to help and will respond asap!

×
